Four Post Car Lift
PSJ 4 Post Car Parking Lift Double Level Hydraulic Car Lift
2. Product features(1) For limited parking space, the vehicle can be parked in multiple times, which can save a lot of space. According to the user's requirements, the number of columns
Min height50MM
Max height1800MM
Max load capacity2500kg
Platform size6000mm*2050mm
Motor power3kw
  • 2. Product features

    (1) For limited parking space, the vehicle can be parked in multiple times, which can save a lot of space. According to the user's requirements, the number of columns can be arranged rationally to realize the design of two floors and multiple parking spaces.

    (2) Controller control, simple operation, easy access. Button, wireless remote control optional!!!



    (3) The operation is stable and reliable, which ensures the safe movement of the vehicle, low noise, and convenient access to the vehicle.



    (4) Anti-fall protection device, photoelectric safety detection of people entering the car, running automatically stopped, vehicle over-long alarm, under-voltage phase loss, over-current, power-off self-locking, emergency shutdown and other comprehensive security protection to ensure the safety of the garage.



    (5) Photoelectric detection, control of vehicle specifications and parking positions, enabling vehicles to be parked in an orderly manner.

    (6) With emergency stop button, emergency stop under exceptional circumstances to avoid accidents.

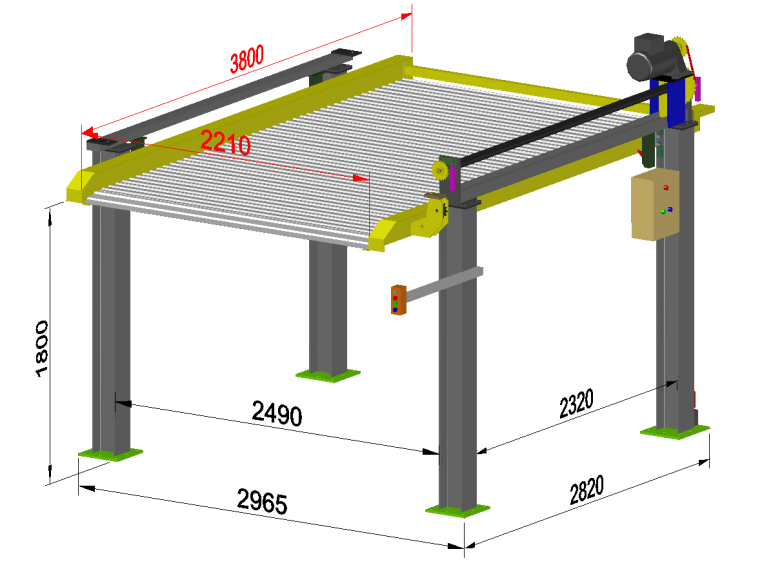

    parameter

    Product model:  PSJ-2C

    Equipment size: 2965X2820X1800mm

    Lifting weight:  2000kg

    Car plate size:  3800X2210mm

    Equipment weight:  2000kg

    Lift speed:  1700mm/min

    Motor Power:  2.2kw



    Other sizes: custom required

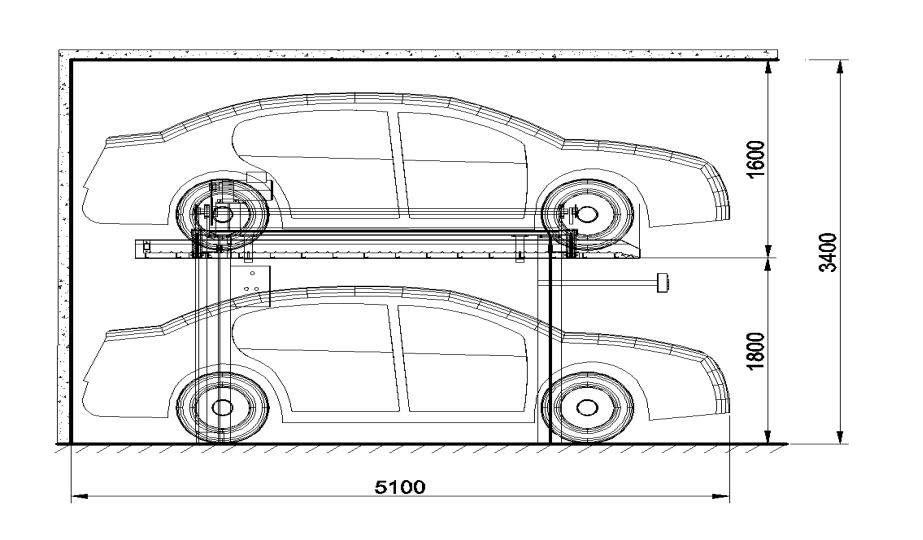

    Suitable models can be selected according to the spatial height(as shown in the figure)

    Height

    Upper

    Lower

    Applicable models

    3400

    1600

    1800

    Sedan  +  Sedan

    3900

    1600

    2300

    Sedan  +  SUV

    4200

    1900

    2300

    Tall boy +  SUV

    4600

    2300

    2300

    SUV    +  SUV

    special

    Customized to the specific environment
