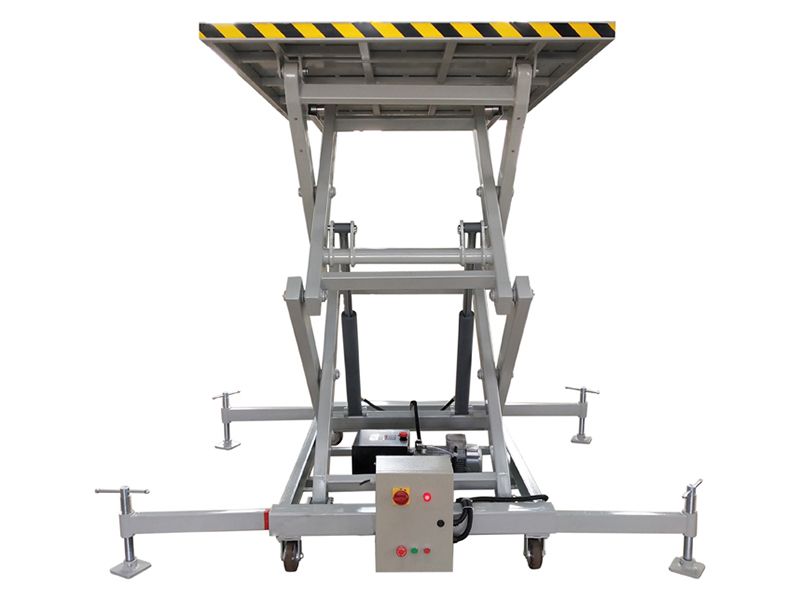

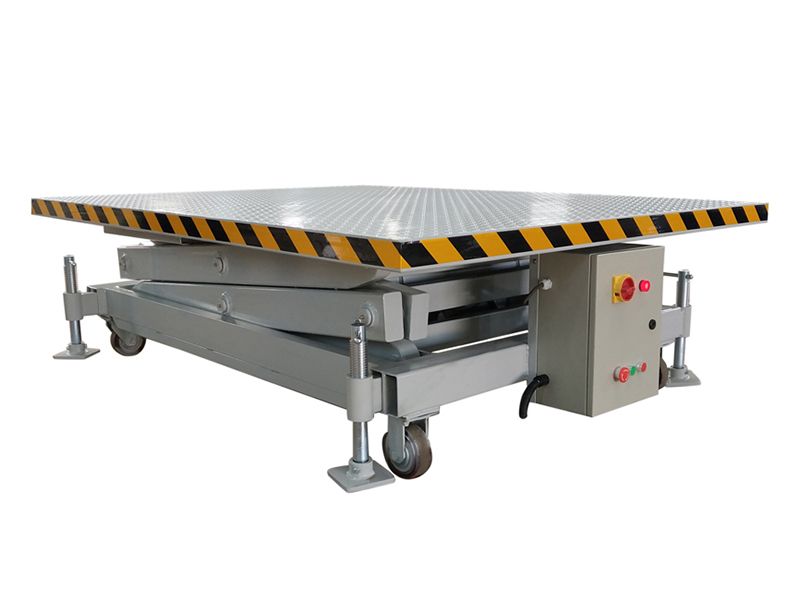

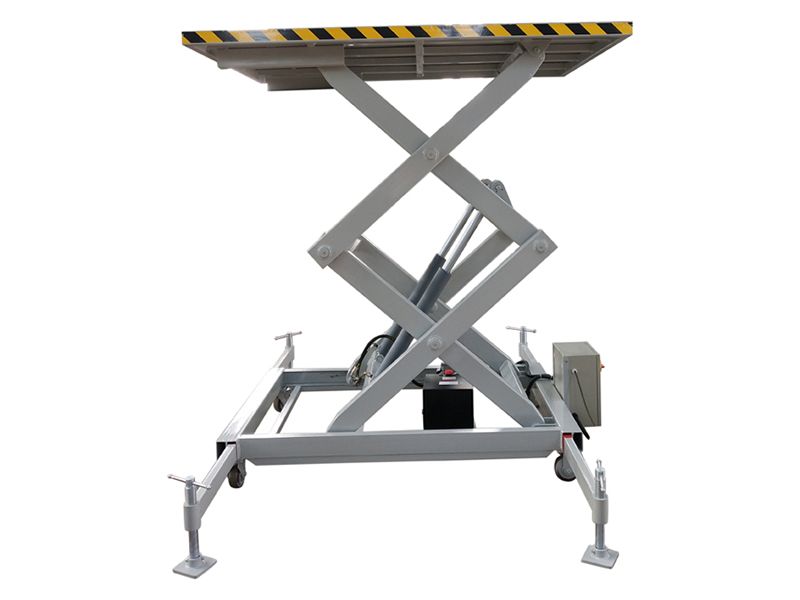

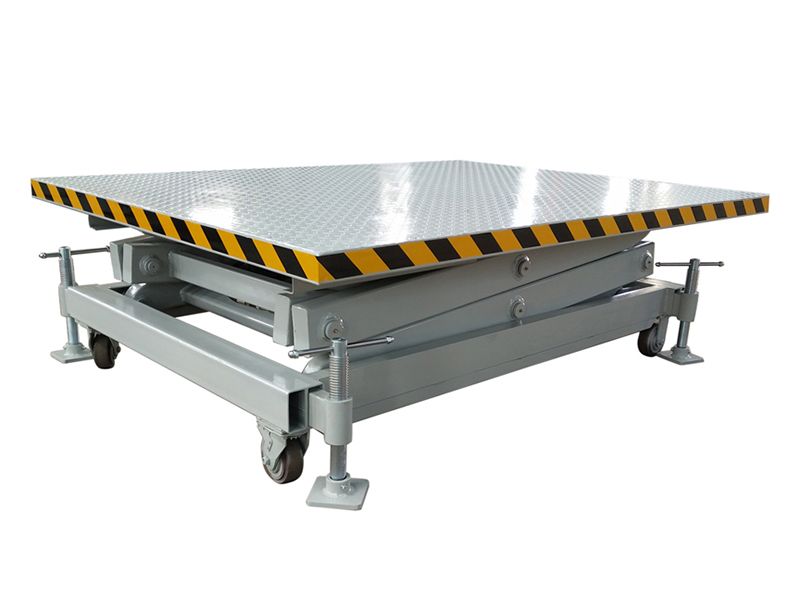

The mobile lifting platform with supporting feet can effectively prevent the movement of the platform when the personnel work, and it is convenient for the user to work safely.

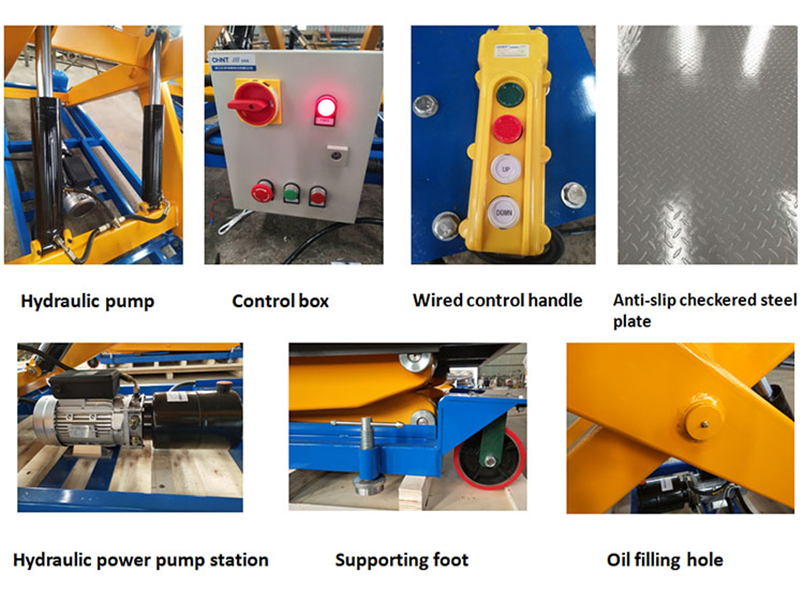

Product details:
Product advantages:
1.The basic frame is made of rectangular square steel-field platform frame with anti-skid plate. The plate or stainless steel plate can effectively reduces the deformation of the table.
2.Support arm frame materials are made of high strength 16Mn steel rectangular tube or standard channel steel composite plate.
3.All sliding bearings are self-lubricated bearings with new composite materials, simple maintenance and long service life.
4.The hydraulic system of main oil cylinder is adopted with anti-crack which automatically locks the oil cylinder when the tubing is broken.
5.The hydraulic system has a power failure emergency manual descending device.
Control system:
1.The power part :AC380V/220V or DC24V/12V.
2.The control part : 24V safety voltage.
3.Each platform has a complete set of control switches.

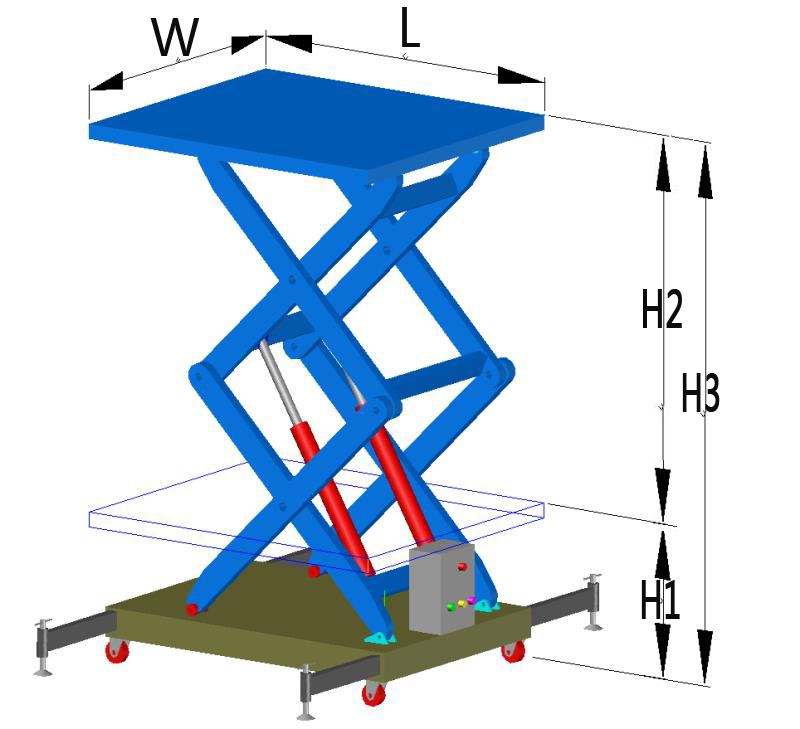

| model | rated loading(kg) | min height(mm)H1 | max height (mm)H2 | table size(mm) | lift time(s) | power(Kw) |
| SJY1-0.8 | 500 | 450 | 1550 | 1200*1000 | 16 | 1.1 |
| SJY1.7-1 | 1000 | 500 | 2100 | 1500*1000 | 28 | 1.5 |
| SJY1.6-2 | 2000 | 600 | 2200 | 1800*1200 | 41 | 2 |
| SJY1.5-5 | 5000 | 650 | 2150 | 2500*1500 | 40 | 4 |
| customization | ||||||
