It is a versatile solution designed to enhance operational efficiency. It can stop at any position along a 10-meter track and perform lifting operations, meeting diverse material transfer needs across workstations. The PVC conveyor belt prevents material adhesion and is easy to clean, with reversible conveying direction for added flexibility.
Equipped with multiple safety features—including warning lights, emergency stop buttons, and limit switches—this platform ensures safe operation. Wireless control enhances maneuverability, while customization options are available to suit your specific requirements.
1. Equipment parameters:
1 | Name | TRACK LIFT PLATFORM |
2 | Model | SJG3-1.2 |
3 | Bearing capacity | 1000KGS |
4 | Platform size | 3000*2000mm |
5 | Maximum height | 3000mm |
6 | Minimum height | 1150mm |
7 | Voltage | 1 phase120V/60HZ |
8 | Overload protection | Protect the equipment and extend the life |
9 | Drive system | hydraulic |
10 | Pumping station Power | 2.2kw |
11 | Motor | Four. Two motors (0.3KW) for controlling the track movement, one motor (2.2KW) for controlling the platform rise, and one motor (1.5KW) for controlling the pipeline belt movement. |
12 | Control system | Main control box+Wireless remote control (2) |
13 | Color | black |
14 | Safety facilities | ①Overload protection, ② oil valve on sealing parts,③ phase protection in control box,④ emergency stop button on master control box |
15 | Railway track | The recommended track width is 2820 millimeters in the middle and 2890 millimeters on the outside. |

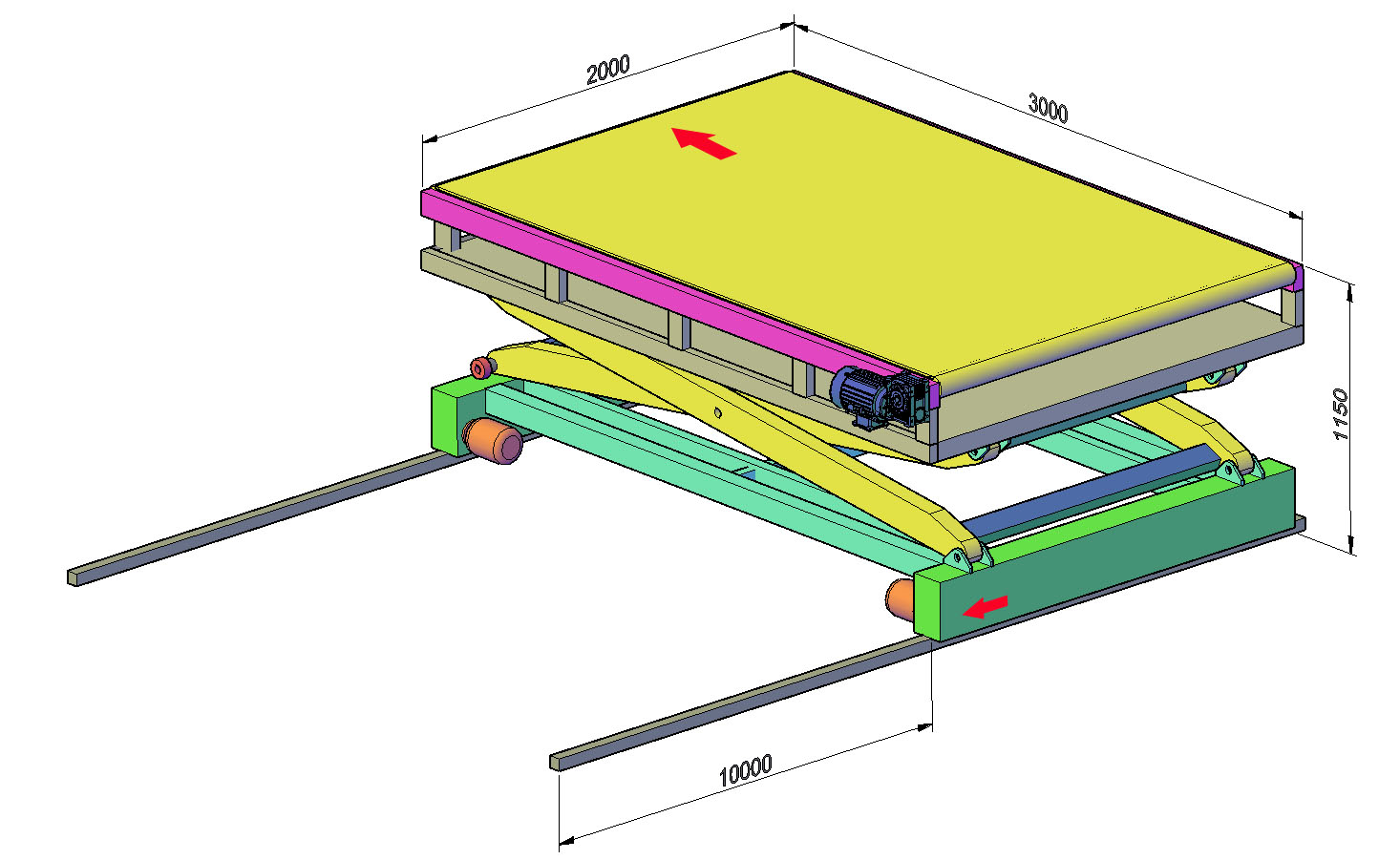

2.Design drawing
