Stationary Scissor Lift

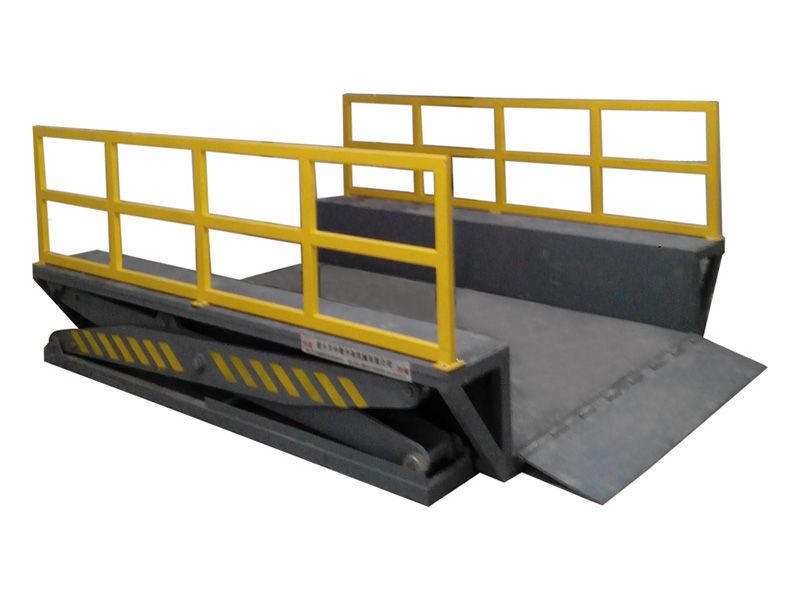

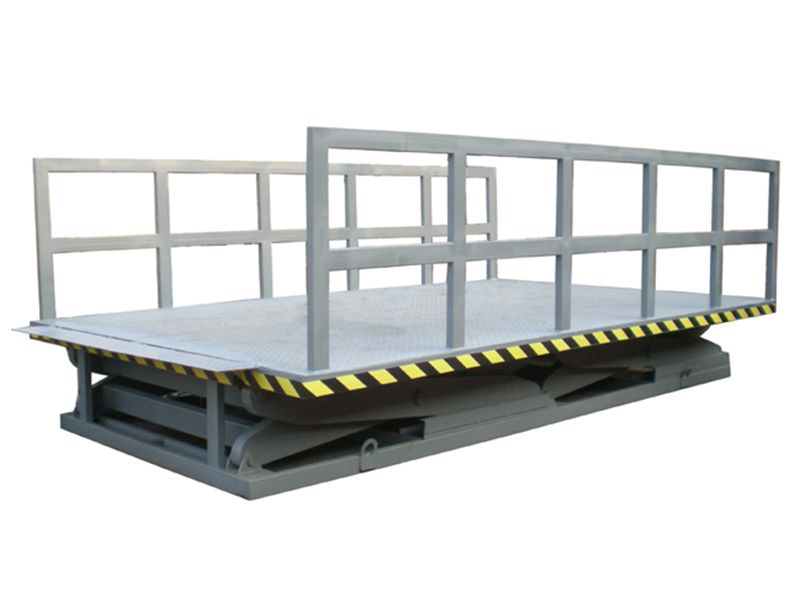

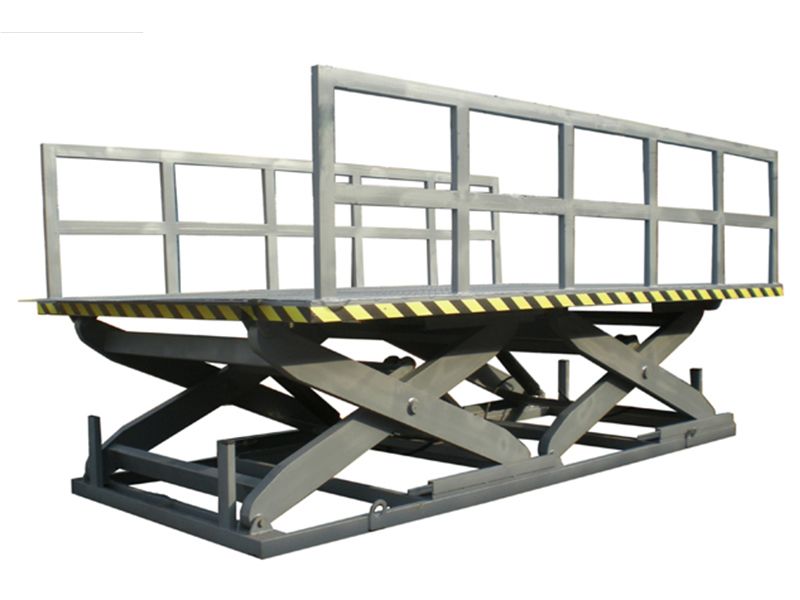

Electric Fixed Hydraulic Scissor Lift Platform With Guardrail
The fixed scissor lift platform is used to transfer goods from one working level to another, can be used on designated floors and platforms, and can choose large capacity, platform size and lifting he
Min height70mm
Max height1800mm
Max load capacity3000kg
  • The fixed scissor lift platform is used to transfer goods from one working level to another, can be used on designated floors and platforms, and can choose large capacity, platform size and lifting height according to actual needs.

    For the safety production work, the protection work of the lifting platform is indispensable. The guardrail on the platform can effectively protect the safety and stability of the personnel and goods.



    Product advantages:

    1.The basic frame is made of rectangular square steel-field platform frame with anti-skid plate. The plate or stainless steel plate can effectively reduces the deformation of the table.

    2.Support arm frame materials are made of high strength 16Mn steel rectangular tube or standard channel steel composite plate.

    3.All sliding bearings are self-lubricated bearings with new composite materials, simple maintenance and long service life.

    4.The hydraulic system of main oil cylinder is adopted with anti-crack which automatically locks the oil cylinder when the tubing is broken.

    5.The hydraulic system has a power failure emergency manual descending device.


    Control system:

    1.The power part :AC380V/220V or DC24V/12V.

    2.The control part :   24V safety voltage.

    3.Each platform has a complete set of control switches.


    parameter



    modelrated loading(kg)min height(mm)H1max height(mm)H2table size(mm)L*Wlifting time(s)votage(V)power(Kw)
    single shear lift platform
    SJG1.3-0.55007013002000*1000163801.5
    SJG1.3-110007013002200*1260183802.2
    SJG1.5-220007015002300*1260313803
    SJG1.8-5300050018004000*2200453805.5
    customizationAll the platform size, capacity, color, travel height etc can be customized
