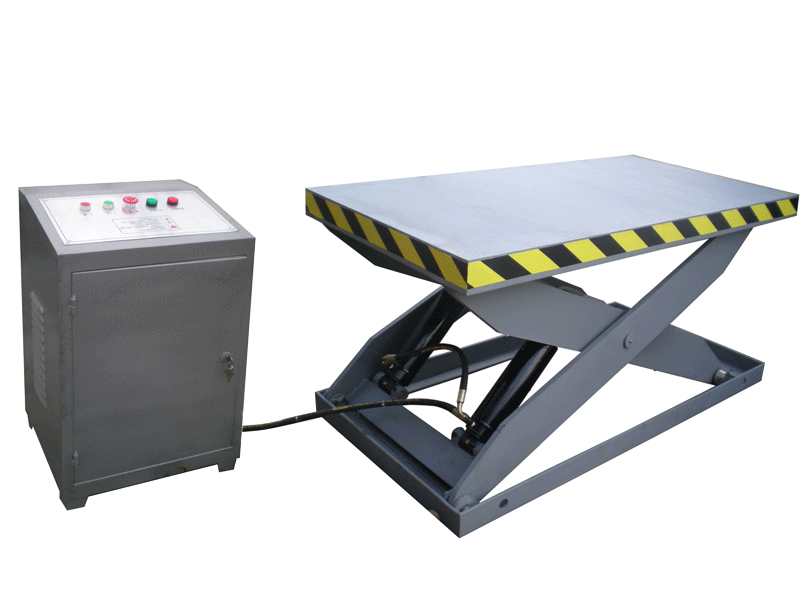

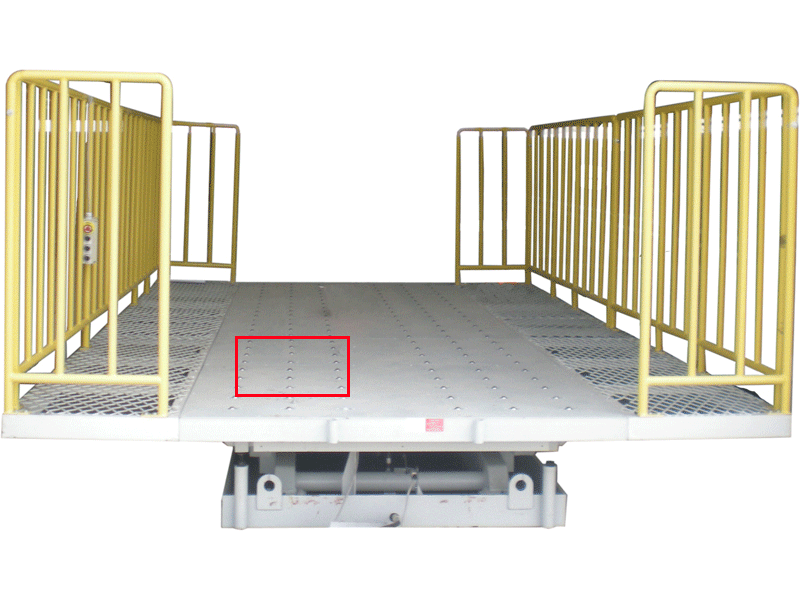

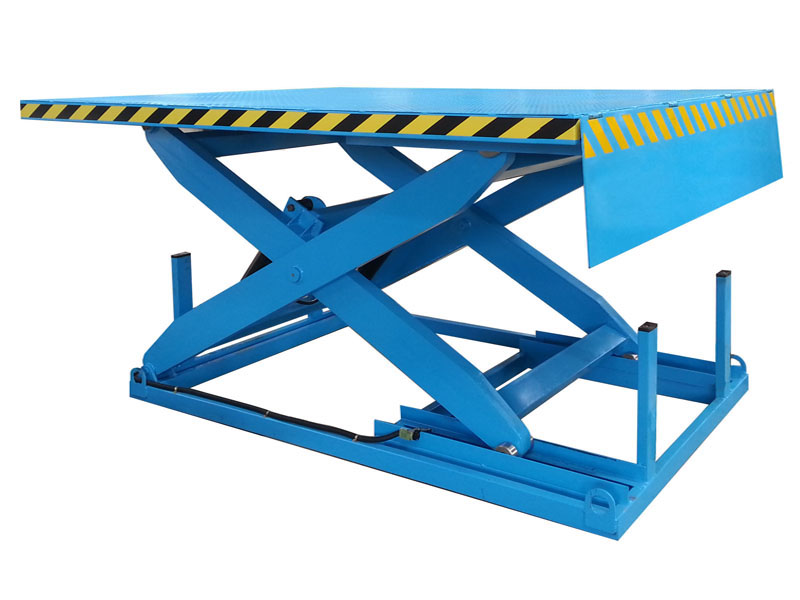

The stationary lifting platform has many special configurations according to different needs: roller type, side movable type and automatic loading flap.
Features:
1. Compact and stable structure, it can adapt to high frequency continuous operation.
2. The height and stability of the lift can meet the steady lifting of large tonnage cargo.
3. It has a hydraulic system with anti-attachment and overload protection to ensure safe operation.
4. Arbitrary configuration of rollers, balls, turntables, automatic loading flap, etc., can meet the requirements of different working conditions.
parameter
| model | rated loading(kg) | min height(mm)H1 | max height(mm)H2 | table size(mm)L*W | lifting time(s) | votage(V) | power(Kw) |
| single scissor lift platform | |||||||
| SJG1-0.8 | 500 | 200 | 900 | 1350*700 | 16 | 380 | 1.5 |
| SJG1-0.8 | 1000 | 220 | 1020 | 1500*800 | 18 | 380 | 2.2 |
| SJG1-2 | 2000 | 220 | 1020 | 1800*1000 | 31 | 380 | 3 |
| SJG1.2-5 | 5000 | 350 | 1550 | 2000*1200 | 56 | 380 | 5.5 |
| SJG1-10 | 10000 | 450 | 1450 | 2800*1800 | 48 | 380 | 5.5 |
| customization | optional | ||||||
