Mobile Container Ramp

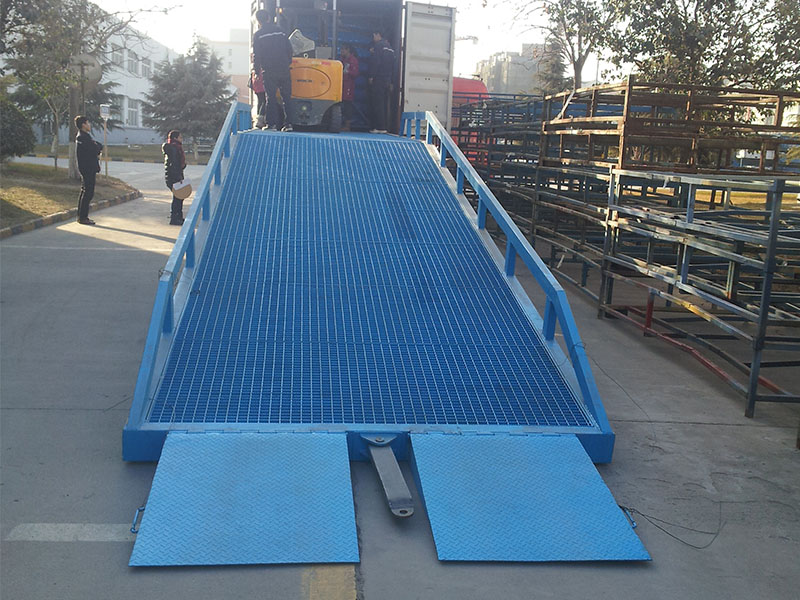

6T/8T/10T Movable Hydraulic Dock Leveler Mobile Yard Ramp
 The movable hydraulic dock leveler is widely used in the warehousing logistics base for frequently load and unload goods, including the factory,warehouses with a variety of vehicle models,statio
Lifting distance1--1.8 m
Max load capacity15000 kg
Drive modeCUSTOMIZED SIZE
  •  The movable hydraulic dock leveler is widely used in the warehousing logistics base for frequently load and unload goods, including the factory,warehouses with a variety of vehicle models,stations, terminals and other places.The equipment is operated easily and can save labor work and promote the efficiency, safely and conveniently


    Features

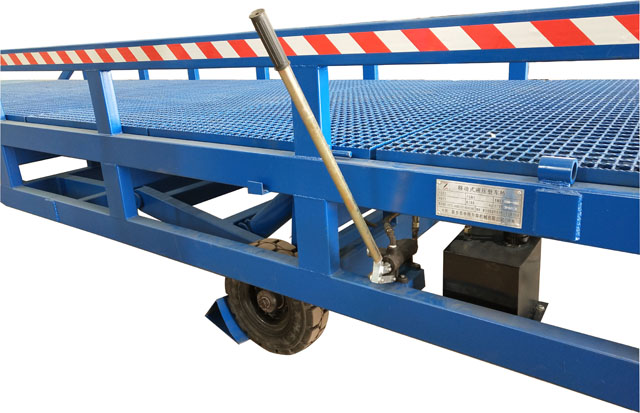

    • User-friendly, two-speed hand crank system to adjust deck height


    • Supported by heavy duty I-beams for superior strength


    • Adjustable riggers for extra safety while loading process

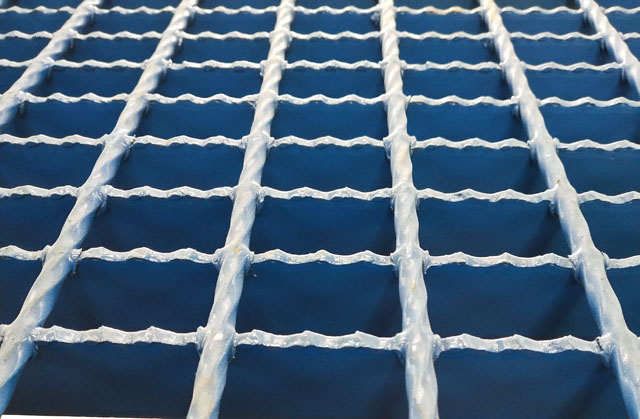

    • Positive steel mesh provide ability of non-slip

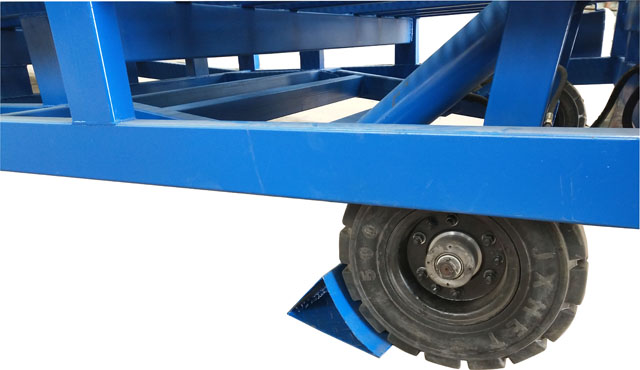

    • Moves easily on two big solid tires

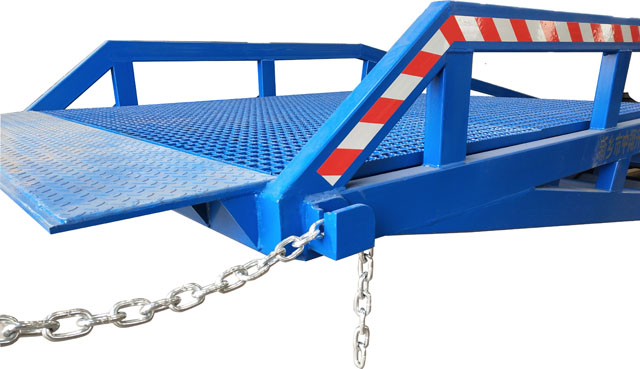

    • Safety chain for secure ramp-to-trailer connection


    • Folding front lips


    • Foldable long back tail providers small parking area requirements


    • Double anti-rust primer before painting for protection

    20130125_161701


    11

    13

    14

    12


    parameter
    Model

    Load

    (ton)

    Adjustable Range

    (m)

    Overall size(mm)

    Weight

    (kg)

    Control Mode
    DCQY 0.8-661--1.811100*2000*11002500Manual
    DCQY 0.8-881--1.811100*2000*11002700Manual
    DCQY 0.8-10101--1.811100*2000*11002900Manual
    DCQY 0.8-15151--1.811100*2400*11003300
    Electric
         All the platform size, capacity, color, travel height etc can be customized
