This platform can install on the ground directly or make one pit,which is used for transfer cargo between different floors. Hydraulic drive, steady working and simple operation.

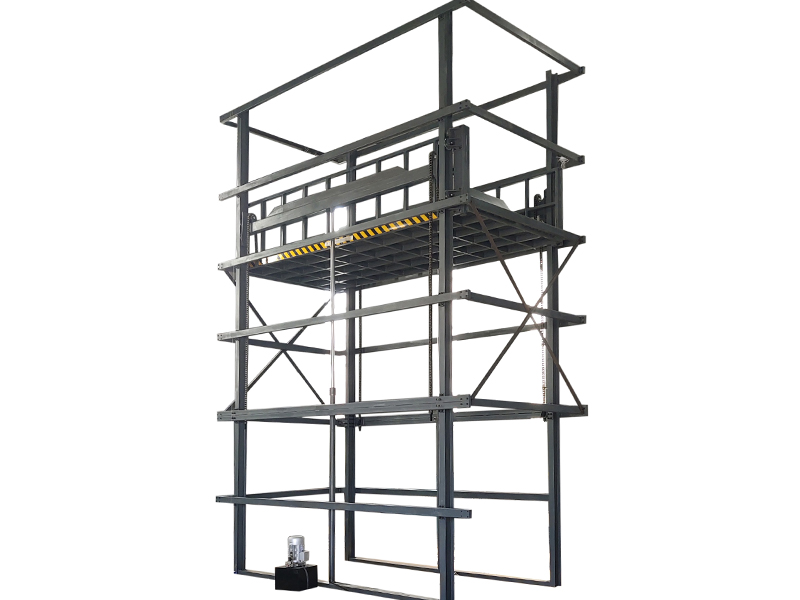

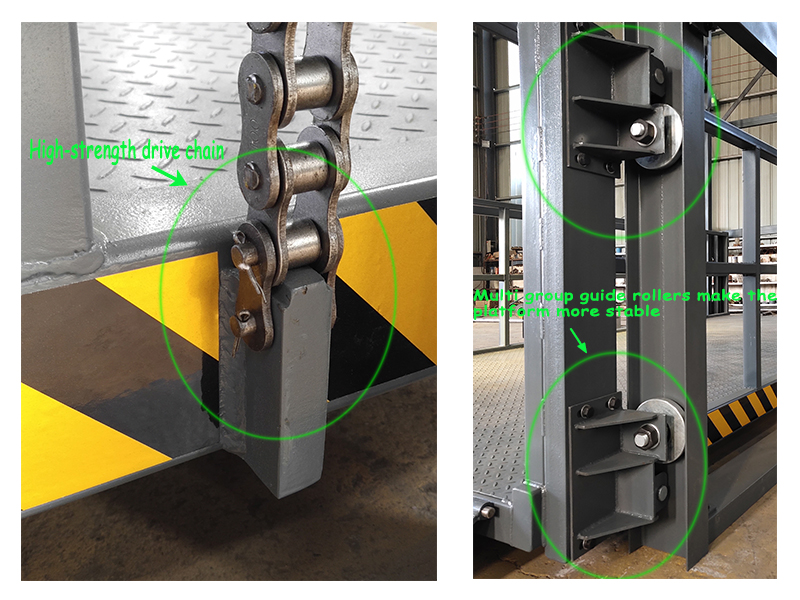

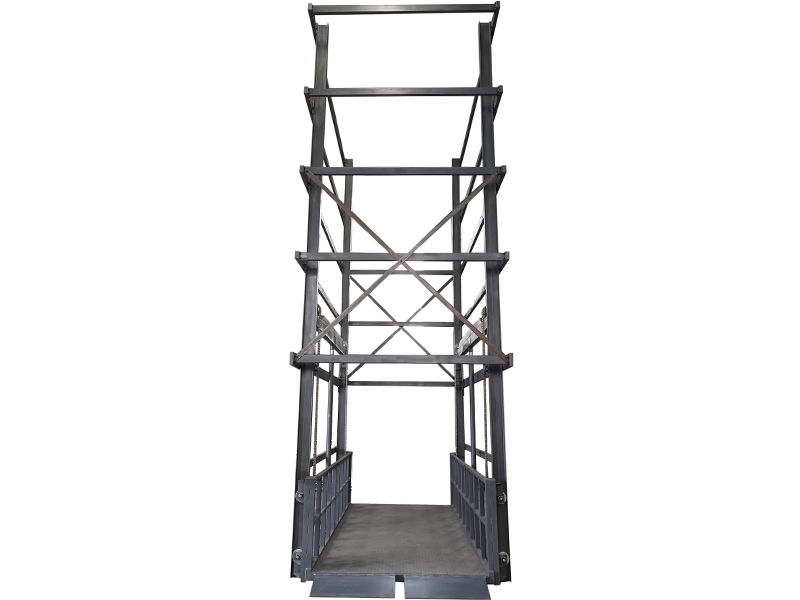

Cargo lift provides fast, efficient, convenient and safe access to or from mezzanines, balconies, basements, and between levels in multiple story buildings. They can be installed for through-floor, interior or exterior applications. The principle components of the machine include guide columns, carriage and a mechanical or hydraulic actuating mechanism.
Advantages
1.High load capacity for cargo transport to higher heights
2.Minimum height 100-200mm
3.simple operation and reliable
4.it can be designed according to your request
5.hydraulic and electric drive
PRODUCT DETAILS
Saftey devices
Emergency drop valve | The lift can go down to the nearest floor by hand when the power is cut off. |
Emergency stop button | The lift can be stopped at any emergency. |

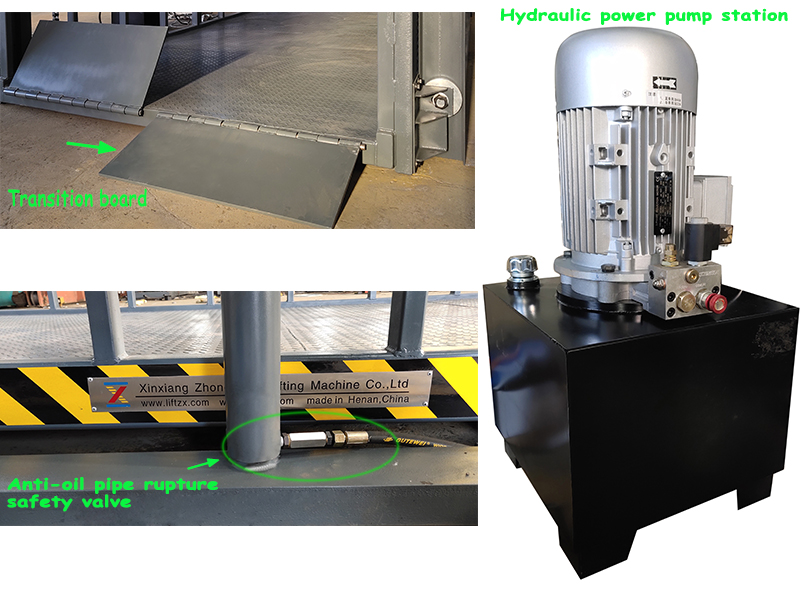

Anti-explosion valve | When the hydraulic system pipe fracture,it can down the channel of the oil to stop the falling. |
| Spillover valve | It can prevent high pressure when the lift moves up. |
Electrical protection | 24V safety control,thermal overload protection ,open-phase protection. |
ITEMS | PARAMETERS |
Power Supply | 380V,3phase,50HZ |
Motor Power | 4KW/AC |

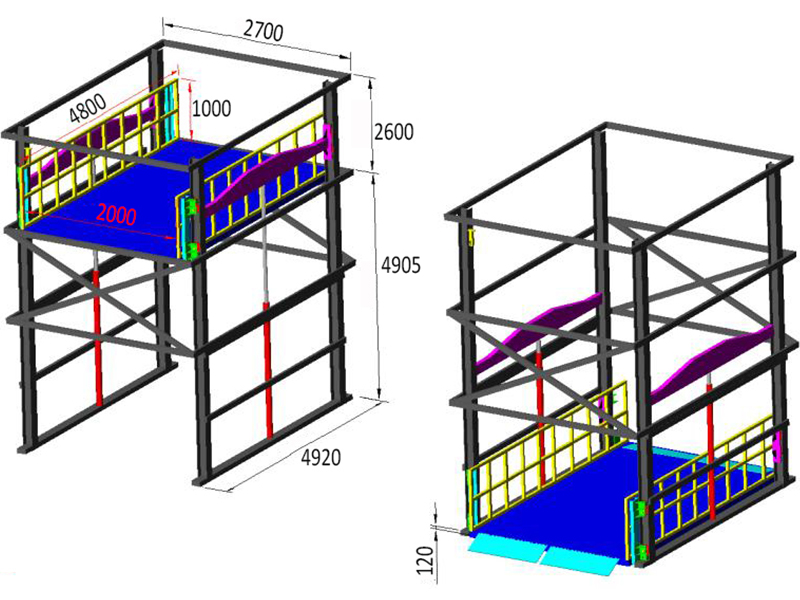

Platform Size | 4800mm*2000mm |
Load Capacity | 3000kg |
Lifting Speed | optional |
Min Height(Pit depth) | 350mm |
Running Mode | Jogging control |
Drive System | Hydraulic driven |
Installation Mode | No pit |
| All above accept customized according to customer's requirements | |
